- Description
- Function drawing
Function
On an ELGUIDER web guiding system, the web changes direction four times, each time by 90°. This web guiding system is based on a pivoting frame with two path rollers. The imaginary pivot point is located on the infeed plane. Lateral web corrections can only be achieved by pivoting around this pivot point. The prerequisite here is that there must always be sufficient web tension for friction-locking between the web and the positioning roller.
Area of use
Thanks to optimized exploitation of elasticity ranges, the pivoting frame can be used for web guiding even in really tight spaces.
Application
The greater the web tension, the modulus of elasticity and the required correction, the longer the infeed, exit and transfer paths should be designed. Experience has shown that the length of these paths should be the 60 - 100 % of the web width. The sensor should be positioned behind the positioning roller, as near to it as possible.
Legend
A = Web tension distribution at infeed | B = Web tension distribution at outfeed | K = Correction of the web guiding | a = Correction angle max. ±5° | σ1 = Basic web tension | σ2 = Tension distribution through swing movement of the roller frame at the infeed | σ3 = Tension distribution through swing movement of the roller frame at the outfeed | 1 = Pivot point | 2 = Infeed roller | 3 = Roller frame | 4 = Sensor | 5 = Fixing roller | LÜ = Transfer length | L1 = Infeed path | L2 = Outfeed path | AB = Operating width
NEW: Configure your own pivoting frame
Customize - visualize - realize
With the MY E+L Configurator, you can easily configure your compact pivoting frame and watch your ideas become reality! To be able to configure a product, you need an active MY E+L account. Log in or register here. You can then start with your configuration.
Looking for more details on the E+L Configurator? Discover all features here.

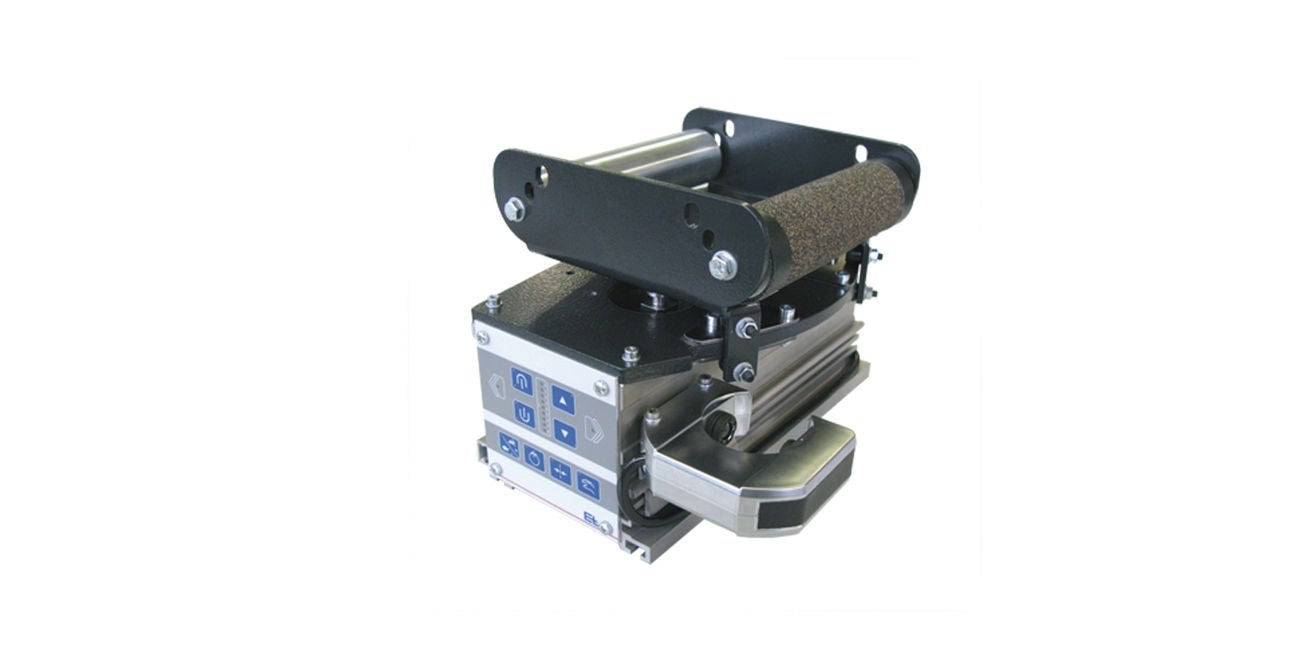

ELGUIDER web guiding system with compact pivoting frames
Product types: DRB14, DRB23, DRB25
- Choice of different sizes, control types and roller surfaces, can be combined with suitable sensor types
- Brushless drive technology for maximum control accuracy and control dynamics
- Integration and networking through web-based management, field/industrial bus interface and various cable lengths
- Simple commissioning and operation via various devices
