Information about the extrusion line

On extrusion lines, rubber webs of varying profile (side wall, apex, tread) or flat webs such as the airtight inner layer of the tire are produced by means of direct extrusion or using roller head systems. E+L offers tried-and-trusted solutions to keep the webs produced in position, to cut them, to laminate them with other materials and to measure the profile or thickness. In this way, an optimal result and the highest quality are ensured.

Systems and products for extrusion lines

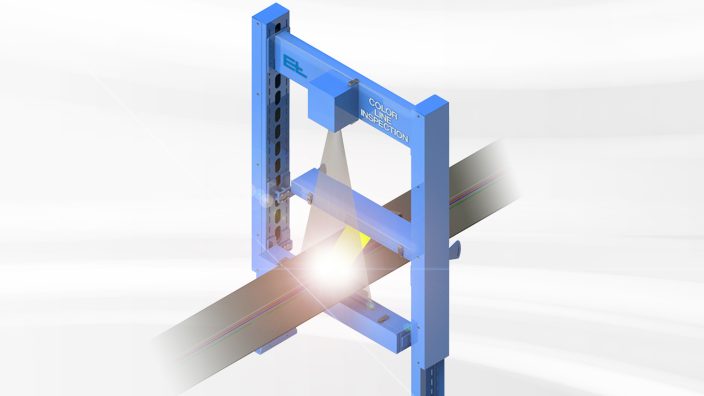

Color line inspection system RSI6

Detection of irregularities in the application of the colors using a triple-chip CCD camera

More info

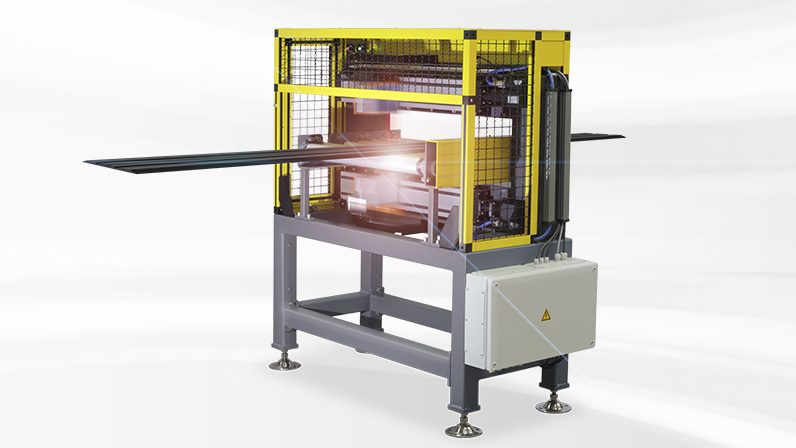

Online profile measurement EL-TRISCAN LS NLS10

Contactless profile measurement system with differential method and real-time measurement

More info

Metering scale NWS10

Weighing of material with unlimited length

More info

Piece weight scales NWS20

Weighing of treads or side walls

More info

Tread length measurement system EL-Length NMS10

Slip-free length measurement for cut treads and side walls

More info

Hole and splice inspection system RSI3/4/5

Scanning of the material web for holes and splices using the transmitted light method with up to three line scan cameras and a scanning frequency of up to 10 kHz

More info

Steering roller system ELROLLER SRB43

Compact steering roller system for nominal widths of 400 to 2,400 mm and a maximum web tension of 700 N

More info

Complexer laminating station

Laminating station for precise laminating of rubber strips

More info

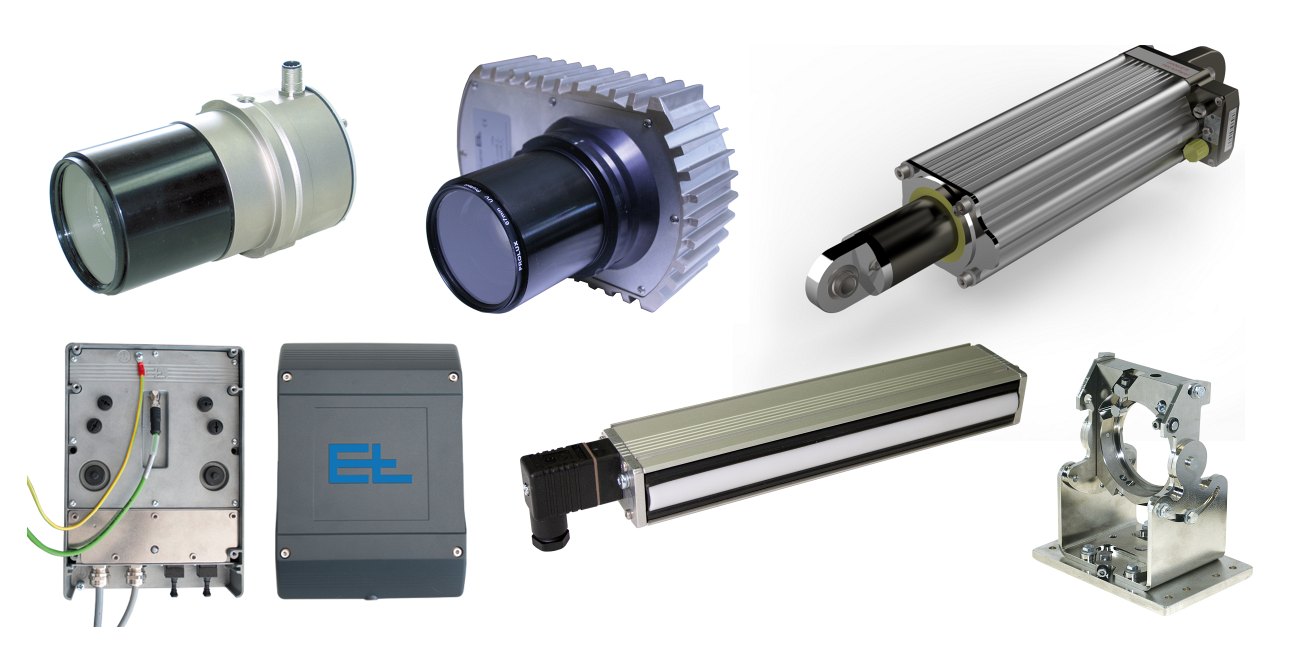

Positioning control components for conveyor belt positioning

Positioning control components for belt strip positioning (steel cord) including peak correction

More info

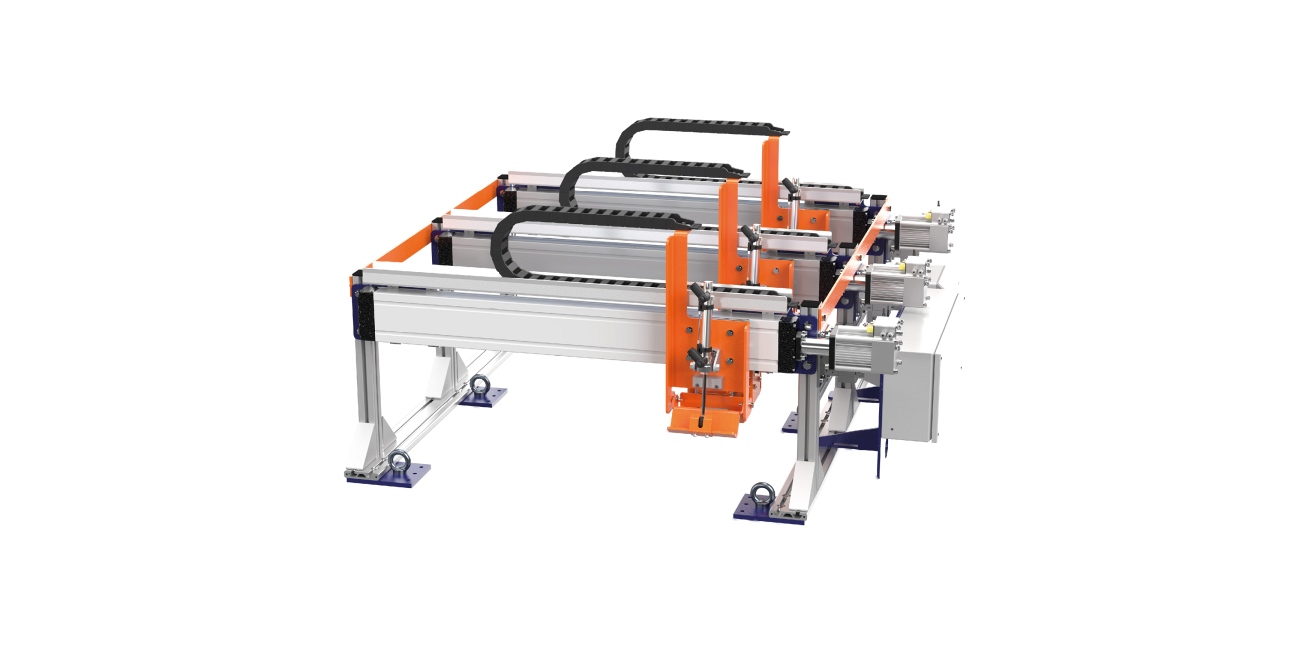

Ink bottle positioning NPS10

Linear, motorized ink bottle positioning

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

Triangulation sensor SL 23

Intelligent triangulation sensor with dual matrix camera and integrated laser light

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

Infrared edge sensor PoE FR 54

Infrared edge sensor based on the principle of retroreflection with a measuring range of ±10 mm and a resolution of 0.02 mm

More info

Sensor roller PD 40

Aluminum roller with two integrated load cells and a roller diameter from 60 to 120 mm

More info

Infrared wide band sensor FE 46

Digital infrared wide band sensor for web center detection, web edge detection, and width measurement with a tube distance (clear width) of 160 mm

More info

Analog measuring amplifier CV 22

Single-channel measuring amplifier for connecting two fabric tension sensors to a strain gauge bridge

More info

Web tension controller DC 62

Compact, digital web tension controller for different control structures including color touch-display

More info

Digital measuring amplifier with display PA 62

Digital two-channel measuring amplifier for connection of 2 fabric tension sensors with a strain gauge bridge

More info

Motorized support beam VSB97

Motorized support beam for cutting blade positioning

More info
