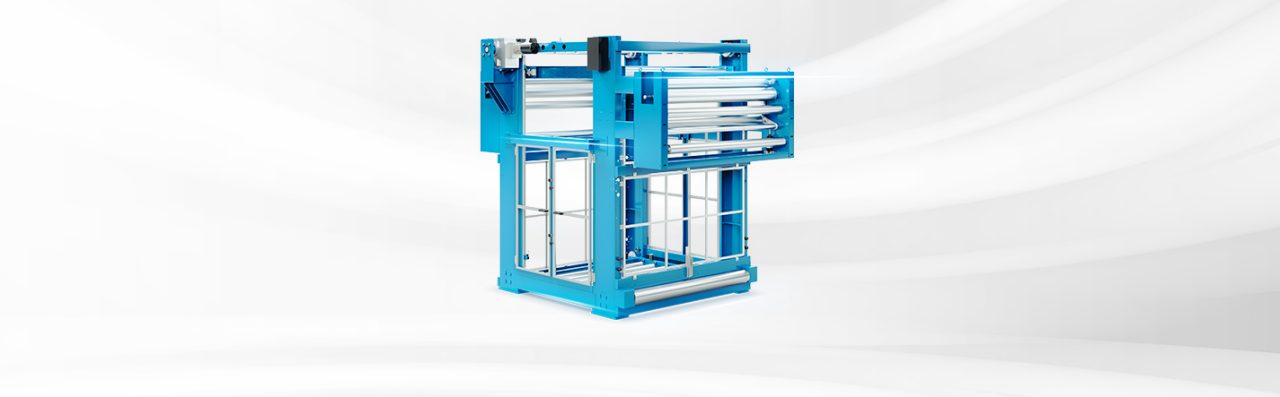

- Web tension-controlled roller accumulator with chain adjustment for web-based storing of woven fabrics, non-woven fabrics, technical textiles and carpet
- Roller accumulator optimized for easy infeed (comb accumulator)
- Roller accumulator optimized for maximum capacity with minimum size (normal accumulator)
- Parallel roller frame movement with pre-stretched chains
- Optional infeed and exit traction unit available
- Pneumatic or electrical roller frame drive
- Low web tension due to balanced roller frame
- Optional double infeed available for minimum space requirements
Function
The task of roller accumulators with chain adjustment is to store woven fabrics, non-woven fabrics, carpet and technical textiles, in order to ensure a continuous production process when changing rolls.
Area of use
The area of use ranges across all textile equipment systems in the infeed and exit. Particularly suitable for textiles sensitive to folding.
Application
The roller accumulator as a single infeed is available as standard. Optionally, the roller accumulator can also be designed as a comb version, in order to reduce the tooling operation. If space is at a premium, then the roller accumulator can be designed as a double infeed.

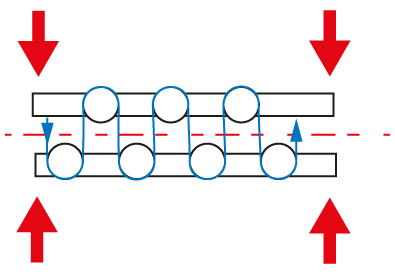

Function of standard roller accumulator, single infeed

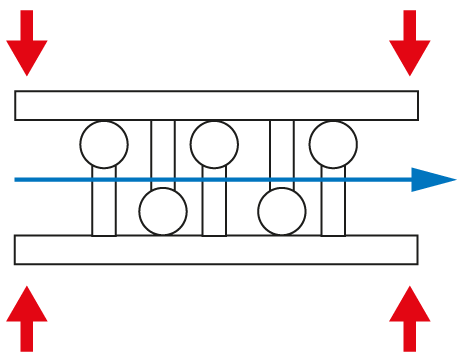

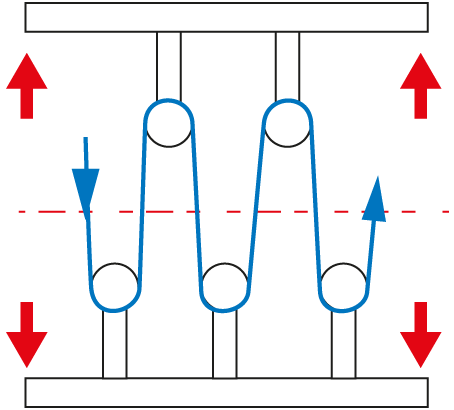

Function of roller accumulator, comb version, single infeed
