Information about the textile cord calender line

On calender lines, textile threads are fed into a calender where they are coated with several layers of rubber. In this way, an endless cord-rubber web is produced. E+L supplies all the components to keep the webs produced in position, to cut them, to laminate them with other materials and to measure their thickness. In this way, the highest quality demands are met.

Systems and products for textile cord calender lines

Spreading system EPILINER BCB11

Edge spreading system for constant web width control of tire cord in edge area

More info

Spreading system CordAliner BCB31

Spreading system with two center-split bow rollers for constant web width control for tire cord over the entire web width

More info

Spreading system CordAliner BCB21

Spreading system with two bow rollers for constant web width control for tire cord over the entire web width

More info

Steering roller system with 2 rollers SRB63

Compact steering roller system with two rollers for S-wrapping and a maximum web tension of 5,000 N

More info

Steering roller system with 3 rollers SRB63

Compact steering roller system with three rollers for omega wrapping and a maximum web tension of 20,000 N

More info

Steering roller system ELROLLER SRB43

Compact steering roller system for nominal widths of 400 to 2,400 mm and a maximum web tension of 700 N

More info

Winding station system WSB91/93

Control components for winding stations with wear-free, brushless drive technology with an actuating force of 1,000 or 3,000 N

More info

Web guiding system with roller basket ELGUIDER DRB73

Web guiding system in frame design with roller basket for positioning of steel cord out of the loop in steel cord cutting systems

More info

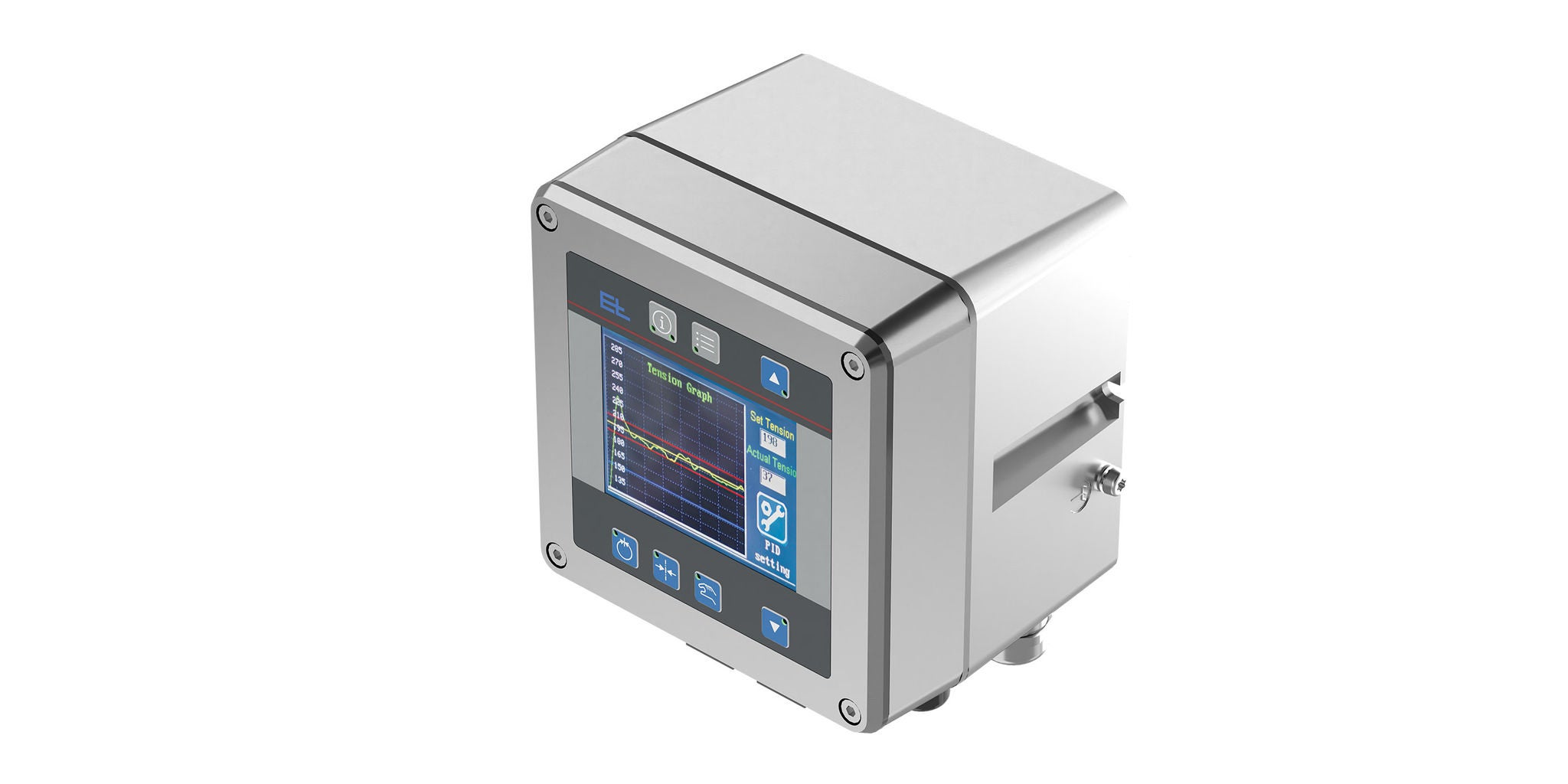

Web tension controller DC 62

Compact, digital web tension controller for different control structures including color touch-display

More info

Digital measuring amplifier with display PA 62

Digital two-channel measuring amplifier for connection of 2 fabric tension sensors with a strain gauge bridge

More info

Analog measuring amplifier CV 22

Single-channel measuring amplifier for connecting two fabric tension sensors to a strain gauge bridge

More info

Thickness measurement O-frame ND1

Contactless online thickness measurement for rubber webs

More info

Thickness measurement C-frame ND2

Contactless online thickness measurement for rubber webs with 1 to 3 measuring points and manual or motorized sensor positioning

More info

Thickness measurement dual sensor ND4

Contactless thickness measurement system with point laser triangulation and eddy current sensor

More info

Cord distribution system EPI

Flexible control and inspection

More info

Surface inspection system RSI1/2

Inspection of the rubber surface using CCD line scan cameras and very powerful LED light transmitters

More info

Positioning control components for conveyor belt positioning

Positioning control components for belt strip positioning (steel cord) including peak correction

More info

Web width measurement system ABS

Contactless detection of web edges and precise monitoring of the width of non-transparent webs

More info

Thickness measurement against measuring roller ND3

Contactless online thickness measurement for rubber webs with 1 to 5 measuring points and manual or motorized sensor positioning

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

Color line camera

Color line scan camera for surface inspections on rubber surfaces with a nominal width of 50 mm

More info

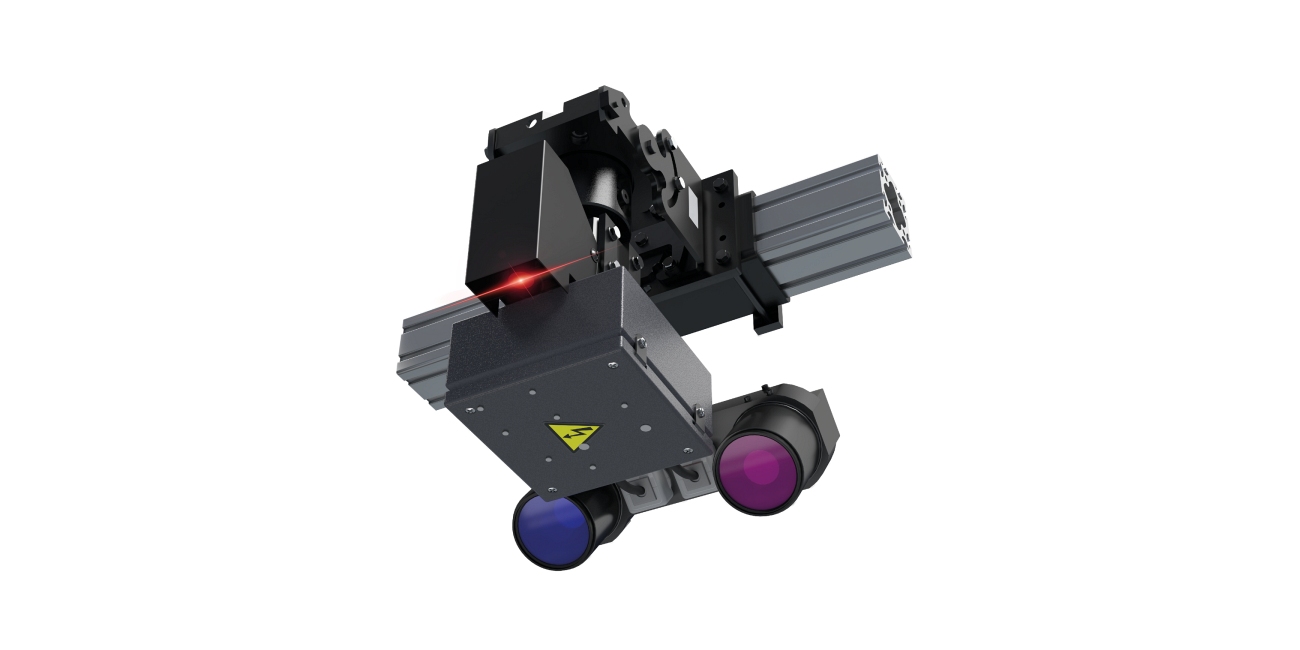

Triangulation sensor SL 23

Intelligent triangulation sensor with dual matrix camera and integrated laser light

More info

Infrared wide band sensor FE 46

Digital infrared wide band sensor for web center detection, web edge detection, and width measurement with a tube distance (clear width) of 160 mm

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info
