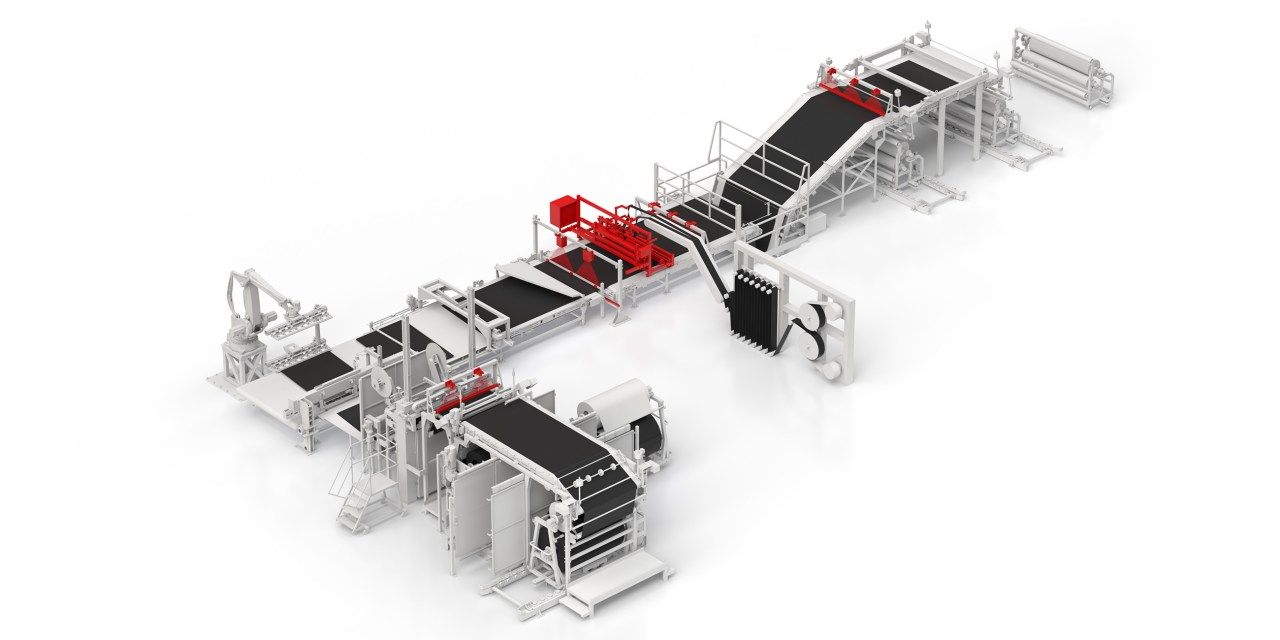

Information about the textile cord cutting line

On textile cord cutting lines, the material manufactured previously on the calender is cut at a defined angle and joined together again to provide maximum stability in the finished tire. E+L supplies all the components to keep the webs in position and to laminate them with other materials, as well as measuring systems for monitoring the width or splices. In this way the highest quality demands are met.

Systems and products for textile cord cutting lines

Winding station system WSB91/93

Control components for winding stations with wear-free, brushless drive technology with an actuating force of 1,000 or 3,000 N

More info

Steering roller system ELROLLER SRB43

Compact steering roller system for nominal widths of 400 to 2,400 mm and a maximum web tension of 700 N

More info

Pivoting roller system VGB15

Compact pivoting roller system with contactless edge acquisition used to guide conveyor belts

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

Color line camera

Color line scan camera for surface inspections on rubber surfaces with a nominal width of 50 mm

More info

Triangulation sensor SL 23

Intelligent triangulation sensor with dual matrix camera and integrated laser light

More info

Surface inspection system RSI1/2

Inspection of the rubber surface using CCD line scan cameras and very powerful LED light transmitters

More info

Web width measurement system ABS

Contactless detection of web edges and precise monitoring of the width of non-transparent webs

More info

Hole and splice inspection system RSI3/4/5

Scanning of the material web for holes and splices using the transmitted light method with up to three line scan cameras and a scanning frequency of up to 10 kHz

More info

Positioning control components for conveyor belt positioning

Positioning control components for belt strip positioning (steel cord) including peak correction

More info

Measurement of the splice overlap length SMS1

Measurement of the length of the overlap at the splice using laser distance sensors

More info
