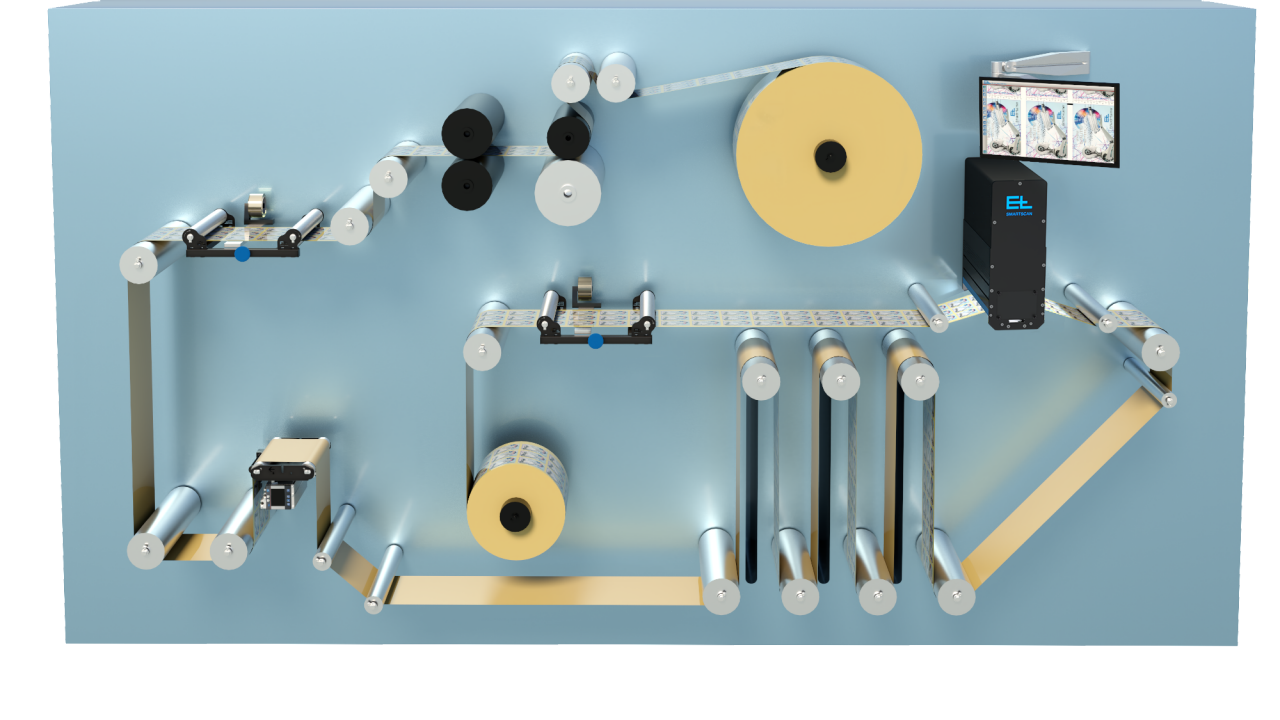

Information about the inspection rewinder

Quality control on the inspection rewinder must be straightforward, must function reliably and guarantee 100 % quality. Our SMARTSCAN inspection system offers all of this. It continuously checks the entire width and length of the web and reliably and completely detects problems such as print defects, missing labels, matrices that have not been removed, areas with adhesive and flags; it then positions the defects such that the user can quickly and specifically undertake the necessary corrections.

Systems and products for inspection rewinders

More info

More info

Web monitoring system ELSCAN OMS4.6

Web monitoring system for use in the printing industry for operating widths up to 2,370 mm

More info

Web guiding system ELGUIDER DRB14

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 160 to 450 mm and a maximum web tension of 300 N

More info

Web guiding system ELGUIDER DRB23

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 300 to 700 mm and a maximum web tension of 700 N

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

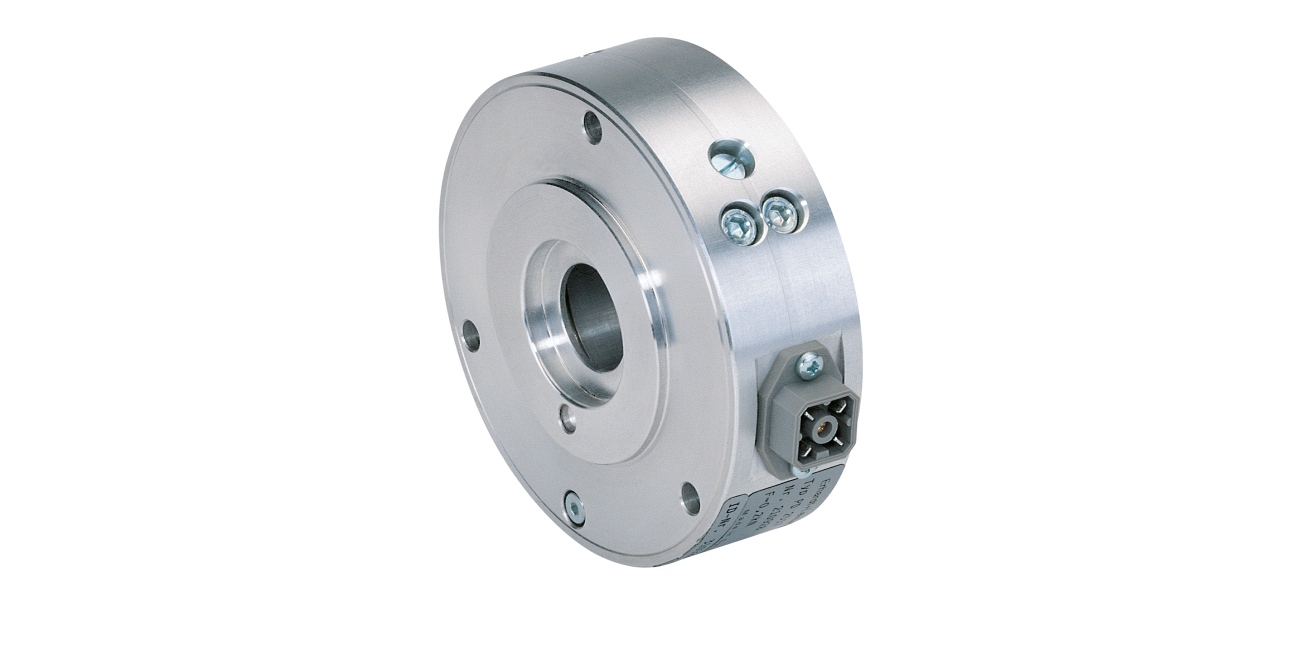

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info

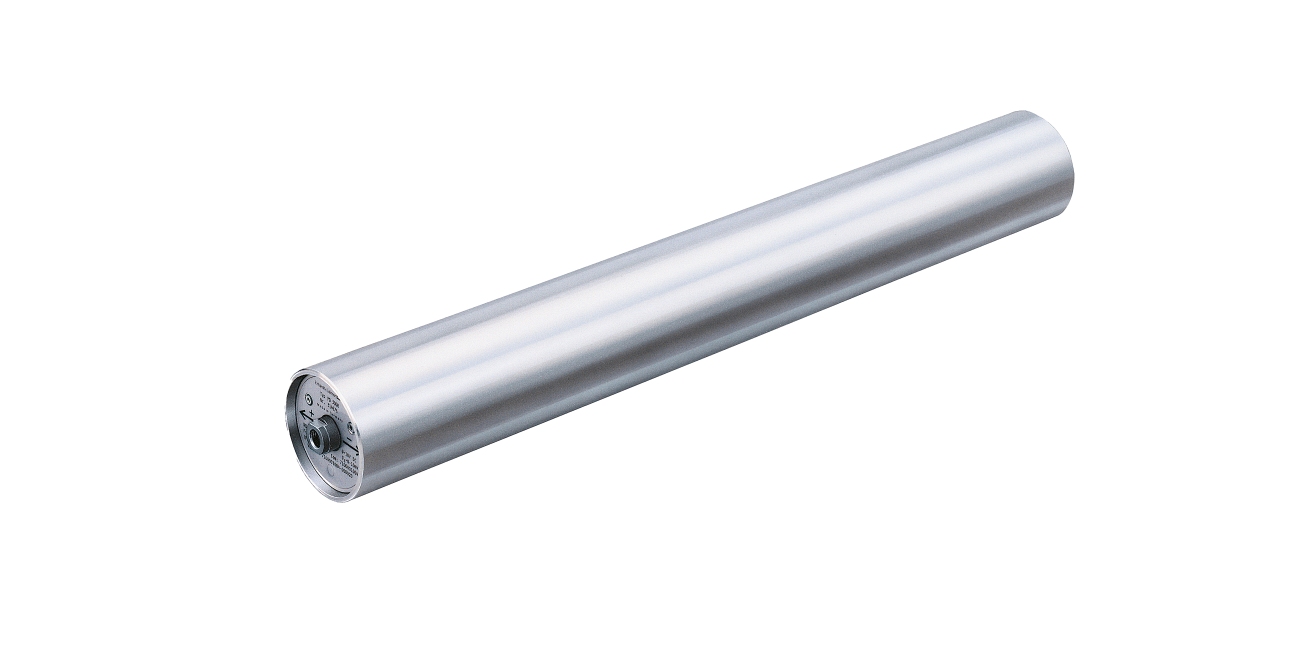

Sensor roller PD 30

Aluminum roller with two integrated load cells and a roller diameter from 80 to 200 mm

More info
