ELTENS - System for web tension measurement and control with configurable load cells
Today, the manufacturers and users of machines for processing web-type materials are confronted with ever increasing demands: production processes should be even faster, while at the same time performed with greater precision, the quality of the finished product further improved while personnel, waste and, above all, downtimes, should be reduced to a minimum. A decisive contribution to the fulfillment of these prerequisites is made by web tension control systems by Erhardt+Leimer.
ELTENS product portfolio
ELTENS is a comprehensive system for monitoring and controlling web tension and offers a wide range of load cells for different applications and production requirements. Combined with a variety of amplifier and control units, you receive a complete package that solves all your web tension issues and improves production quality and quantity.
ELTENS features at a glance:
- Individually configurable for any industrial application
- Type and measuring range of the load cells are optimally dimensioned according to the requirements
- Accessories such as connection cables, mounting adapters, and ball bearings are offered
- Choice between analog and digital measuring amplifiers
- Installation options for the measuring amplifier or measurement display in control cabinets, control panels, or directly on the machine
- Connection to customer control systems can be made via analog signals or via Ethernet interface with various protocols

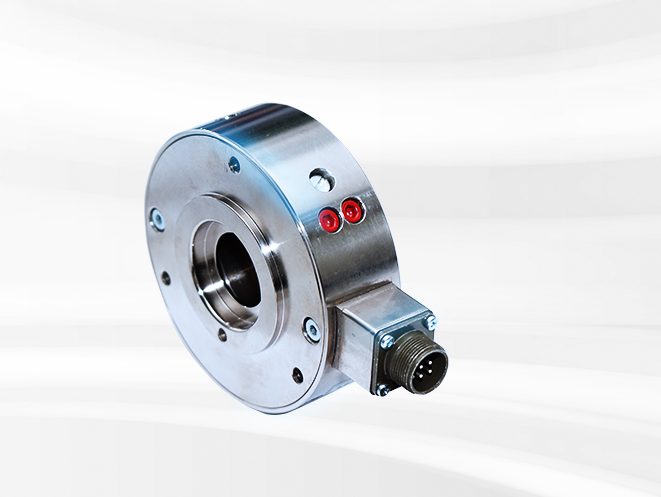

PD 21/22
- 0.05 - 10 kN
- broad web
- steel
- one & both sides
- for all applications
PD 23/24
- 0.1 - 3 kN
- broad web
- stainless steel
- one & both sides
- wet environment
PD 25/26
- 0.1 - 1.5 kN
- broad web
- aluminium
- one & both sides
- for battery industry
PD 27
- 60 kN
- narrow web
- steel
- one side
- single side mount

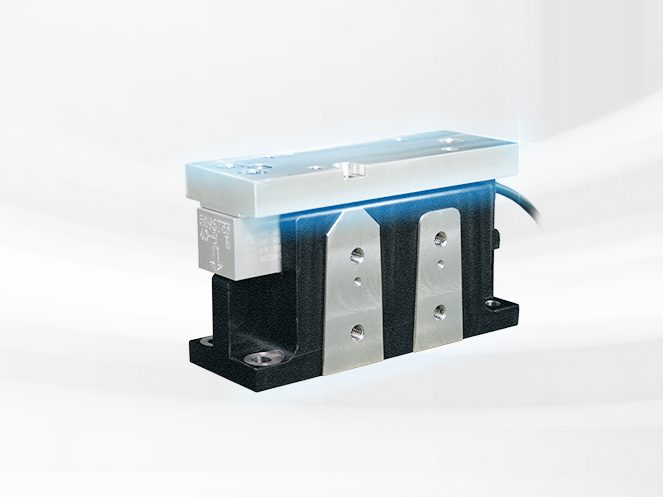

PD 50
- 0.08 - 2.0kN
- broad web
- aluminium
- one & both sides
- easy roller mounting
Flange and block load cells
PD 21/22
| PD 23/24
| PD 25/26
| PD 27
| PD 50
| |
| Nominal measuring force | 0.05 - 10 kN | 0.1 - 3 kN | 0.1 - 1.5 kN | 60 kN | 0.08 - 2.0 kN |
| Web width | wide web | wide web | wide web | narrow web | wide web |
| Material | steel | stainless steel | aluminium | steel | aluminium |
| Bore type | one & both sides | one & both sides | one & both sides | one side | one & both sides |
| Application | for all applications | wet environment | battery industry | single-side mount | easy roller mounting |
| More Information | More Information | More Information | More Information | More Information |

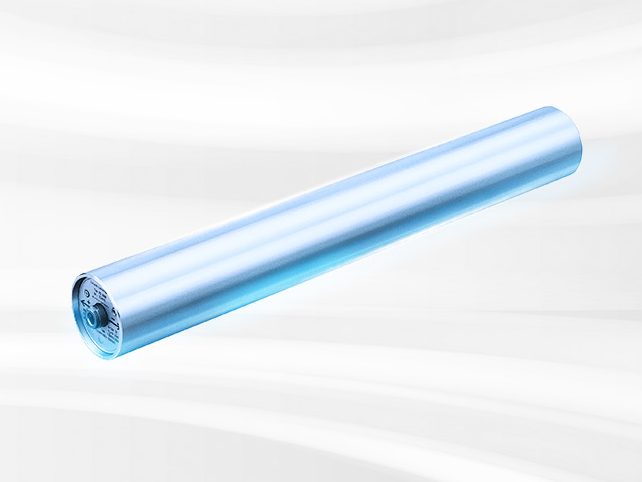

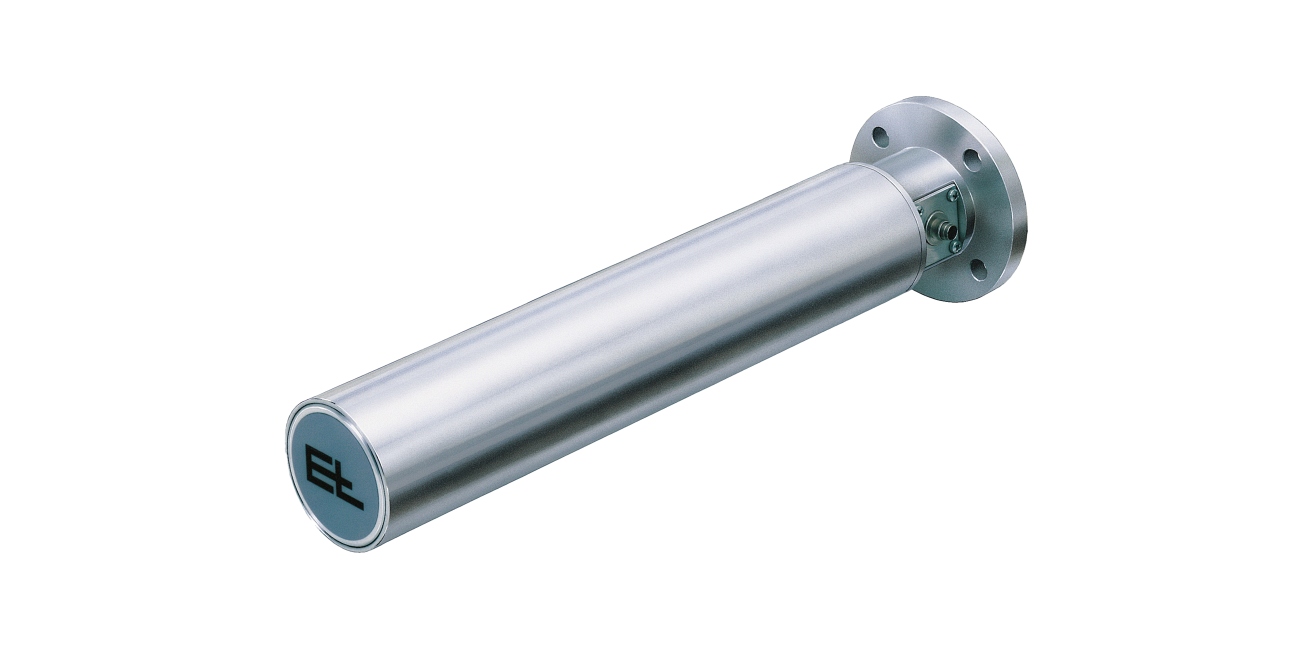

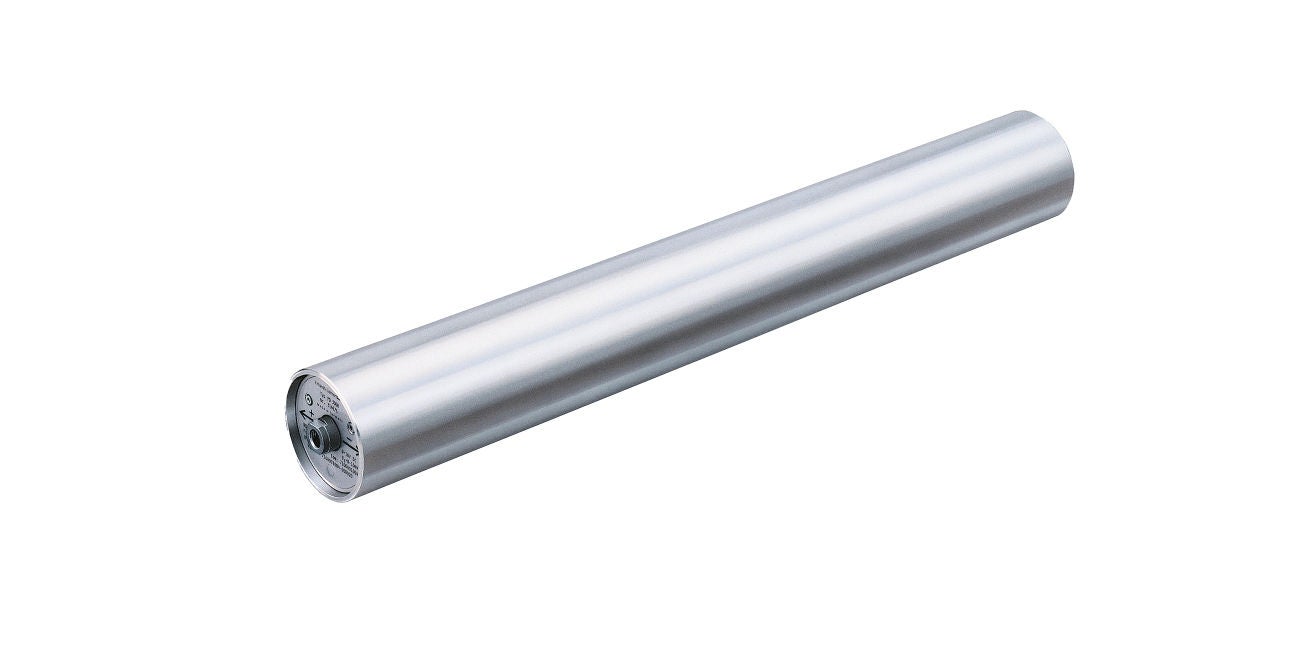

Sensor roller systems
Control and Command stations
Quick expert info & contact
Request download
Write to us! We are looking forward to your message.
Controlled web tension is essential
Typically, web-type materials are fed from a roll to the machine, finished and then rewound. At each stage, web tension errors may occur that may lead to malfunctions and quality impairments. The elimination of these sources of error and ensuring a constant web tension during the production process is the task of E+L web tension control systems. Depending on the material type, application and task, Erhardt+Leimer offers a variety of systems with the latest technology: For decisively more quality and productivity that pays off.
Web tension after the unwinder
- Insufficient web tension causes slack in front of the transport drive
- If the web tension is too high, longitudinal creasing and textile web deformation may be caused
Web tension on the rewinder
- If web tension on rewinding is insufficient, roll telescoping may occur
- Excessively high tensile forces damage the inner windings
The solution: a continuous control loop
Any automation of a controller is based on the principle of a simple control loop. Even the most complex of tasks may be reduced to this control loop.
"As the market leader in automation and quality management, we know that precise web tension in the production process is the key to your product quality. Accuracy, reliable measuring equipment and state-of-the-art technology are the guarantees of success that all Erhardt+Leimer customers can count on."
Dirk Schröder
Sales Operations Manager ELA
Sales Division Manager
Paper / Film / Special Markets
NEW: Configure your own web tension measuring and control system
Customize - visualize - realize
With the MY E+L configurator, you can easily configure your load cell and watch your ideas become reality! To be able to configure a product, you need an active MY E+L account. Log in or register here. You can then start with your configuration.
Looking for more details on the E+L Configurator? Discover all features here.
ELTENS web tension measuring and control system
Product types: PD 21, PD 22, PD 23, PD 24, PD 25, PD 26
- Individual configuration with customizable load cells and accessories for various industrial applications
- Choice between analog and digital measuring amplifiers, installation options in control cabinet, control panel or directly on the machine
- Connection to customer controls via analog signals or Ethernet interfaces with various protocols.
Advantages of the E+L Configurator
Your advantages with ELTENS
The ELTENS calculator
The ELTENS calculator is a free offline E+L tool to support the planning of web tension sensors. Depending on the respective installation situation and requirements of your web tension measurement, the ELTENS calculator supports you in the calculation, dimensioning and selection of suitable E+L web tension load cells.
